Edward S. Curtis’ The North American Indian (1907-1930) was an ambitious project. Curtis set out to document North American indigenous peoples, capturing their lives through both photographs and narratives. This work is not without its critics in the modern era and Curtis himself is a complicated historic figure. That said, the plate volumes are filled with stunning images and are beautifully printed.
Our edition has 20 volumes of folio plates, each with an average of 36 individual plates. These are housed in portfolio-folders that are tied at the foredge. A very thin piece of tissue is in between each plate. These portfolios do not provide adequate protection from abrasion, dust, light, and heavy use. It is also very difficult to find an image within the stack of plates when a patron requests one.
After discussion with the curators we decided we to build custom enclosures for the plate volumes . Each plate will be housed in a paper folder, and each volume would receive a custom cloth drop-spine box with a label clearly indicating the contents. This solution will provide the most protection for the plates, and will make finding a plate easy when it is needed for a class or for a patron.
The custom enclosures for “The North American Indian” plate volumes was generously supported by Jan Tore Hall (T’73) through the DUL Adopt-a-Book program. His donation was made in memory of Inger Tavernise, with thanks for the shared times in service to the University through its Library.
Mr. Hall’s donation allowed us to purchase custom folders for the prints, and bookcloth and binders board for the boxes. Rachel re-foldered and labeled each print to prepare them for boxing. We brought back Tedd Anderson to make the 20 oversized custom boxes. As readers may remember, Tedd worked in the lab for many years creating extreme enclosures for all kinds of books. We knew he could make these large boxes efficiently and beautifully. The first set is finished and labeled and ready for the shelf.
Here are some action shots of the boxes in production.

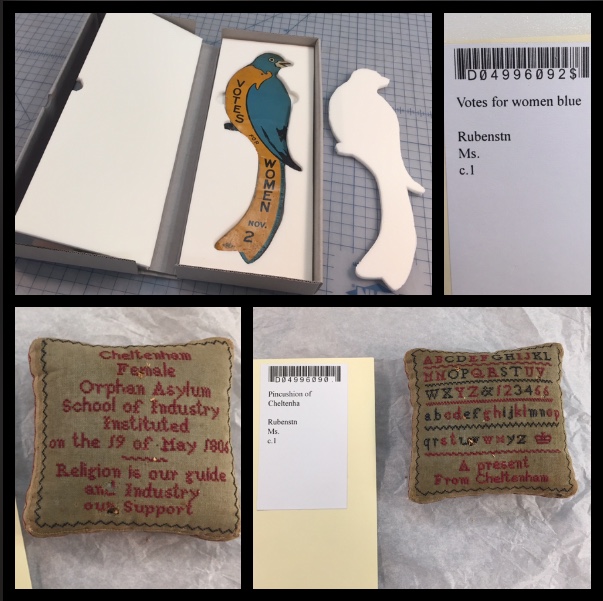

Several items came down for boxing this week. These two items are from the Lisa Unger Baskin Collection. The top is a metal “Votes for Women” sign in a delightful bluebird design. Below are two sides of a small sampler pin cushion that is stitched on the finest linen ground I’ve seen.
These objects represent two aspects of women’s work. The work of the hand, that was/is often taught as a useful life skill. And the work of women as full citizens of their country…the work of standing up for your rights and exercising your right to vote. The Baskin Collection is full of objects like these and it is a real thrill and honor to have them come to the lab for custom enclosures.
Duke Today has a new story out about the collaborative work that staff from Conservation, the Rubenstein Library History of Medicine Collection, and the Shared Materials Instrumentation Lab are doing to house, scan, and eventually 3-D print our ivory manikins. Check out the story here. And watch this very cool video of the process.
By Rachel Penniman, Senior Conservation Technician
The Rubenstein Library holds a growing collection of political ephemera including many political pins. Over time the library has received multiple additions to the collection and expects to continue collecting more of these items in the future. The collection arrived in batches with a variety of different inconsistent housing methods. At first, conservation had been creating custom built trays with individual spaces for each button as seen in this Duke Today video.
This approach resulted in a really nice custom enclosure for a group of buttons, but was time consuming to create by hand and inconvenient when just one or two new buttons would need to be added to the collection.
After a meeting with Rubenstein Library curatorial and technical services staff to assess the state of the entire collection and discuss goals for the future of the collection I started researching housing options. I remembered seeing a method for housing buttons by pinning them on to foam covered boards but many of our buttons didn’t have their backing pins and there was no way to number individual items using that system. I had also seen a method for housing small artifacts that looked like it could be promising with a little modification.
Now we house each button using a clear 4″ x 5” zip top, virgin polyethylene bag with a 40 point tan barrier board stiffener inside. The bags are either 4 mil or 6 mil so they are strong and provide some cushion. I cut the barrier board to be small enough to easily slip in and out of the bag and I round the corners so they don’t fray or poke through the plastic bag. The pins aren’t attached to the stiffener backing but it provides structure and support for the different sized items. The top of the stiffener can be labeled with an item identification number if needed. Then the bags can either be housed flat in trays or upright in shoebox style archival boxes.
This method makes it easy to house large numbers of buttons quickly and is easy enough for technical services staff to assemble these housings themselves. When one or two new buttons arrive to be added to an existing collection, they can easily be bagged and filed in place in an existing box. It is also still easy for researchers to flip through a box and look at each button without having to handle the actual item. So far we’ve been really happy with this solution and I imagine it could be adapted for housing other small ephemera collections in the future.
The Rubenstein Library recently acquired another large Torah scroll. Measuring 40″ in length, these scrolls can be quite heavy and difficult to move safely. The support on which the scroll arrived was minimal and inventive.
The scroll was wrapped in layers of cotton muslin, with cotton twill tape laced through honeycomb board to secure it. Honeycomb board is light enough for two people to easily lift, but rigid enough that it doesn’t bow or cause the scroll to shift. At the time of acquisition, we discussed keeping this support. After considering the necessary handling and pathway through the building to serve the scroll in the reading room, however, it was decided that a full enclosure would offer more protection.
Longtime readers may remember when Beth boxed a similar scroll a few years ago, and more recently you might have seen Tedd’s series on Extreme Enclosures. Each of these large enclosures employs double layers of corrugated board, covered in buckram, to cut down on weight while remaining durable enough for long term handling. Beth’s Torah enclosure is nearing its seventh birthday, so I thought this would be a good opportunity to see how it has aged. Can the double-wall corrugated board really stand up to the abuse of regular handling and re-shelving?
It turns out the box (pictured above without its telescoping lid) is still in very good shape. Despite many trips to the reading room and all the activity of the Rubenstein Renovation, the enclosure shows no wear or distortion from the weight of the contents. Research Services staff report that the lighter weight makes re-shelving (with two people) quite easy and the drop-wall design allows for convenient removal of the heavy scroll from the box.
Considering the success of the first box, I decided to adopt the popular idiom of “if it ain’t broke, don’t fix it” and duplicated the design for the recently acquired Torah.
Library conservators are often called upon to creatively engineer solutions to unique preservation problems. With ever growing and diversifying collections, it sometimes feels like all our attention is pulled toward the next object coming through the door. It’s nice to have the opportunity to go back and critically review some of those solutions, but nicer still to see that, years later, they are still working as they should.
Last month, Senior Conservator Erin Hammeke shared her treatment of a caoutchouc binding, which incorporated a clamshell enclosure with integrated cradle. There are many items in the collection that can benefit from an enclosure like this (henceforth referred to simply as a “cradle box”): books which require a restricted opening to reduce the risk of further damage, collection material that is used frequently, or items that are exhibited at library events outside the reading room. Our History of Medicine Collection has several items which meet these criteria and everyone in the lab was interested in learning how to make a cradle box. This week we dedicated a boxing day to this project, which served both as a training exercise and supports use of the collection.
While several variations on structure are described in publicly available resources (see the AIC Wiki), we decided to all just stick with Jeff Peachey’s design. The benefits to this design are that the cradle fits the book very well and is attached to the box, so you don’t have to worry about it being removed and getting lost. We could also rely on Erin’s previous experience and help each other through the more complicated steps!
Construction begins by measuring the book at the intended opening angles to determine the sizes of the individual parts of the cradle. As with measuring for exhibit cradles, it’s much easier to prop the boards up with cushioned weights before taking measurements.
Then those pieces are cut from Davey board…
… and covered in book cloth. The cradle is essentially constructed in two pieces, which are attached by a cloth spine piece. The image below shows the interior of one cradle side during covering (left), including the adhered ends of cloth tape that allow the user to lift up the cradle (right).
Once the cradle is complete, the book is placed inside and the entire sandwich is measured for the clamshell box. The box is constructed in the usual way, but the right side of the cradle is attached to the interior of the smaller tray near the spine.
It was a lot of fun to approach learning this enclosure design as a group. If one of us hit a roadblock or did not quite understand the next step in the instructions, we could all talk it through together. Over the course of the day, we developed new techniques for completing steps or learned from each other’s mistakes. And, more importantly, now six more books from the collection will have cradles with them wherever they go!
By Rachel Penniman, Senior Conservation Technician
Recently part of the McKeen-Duren Family papers was brought to the lab. Two boxes of approximately 40 daguerreotypes and ambrotypes were in need of better housing. Most of the photographs are of the close family of Silas McKeen. Silas was born in Corinth, Vermont in 1831 and was a Congregational Minister in Bradford, Vermont for much of his life. At some time, a family member had attached slips of paper inside each of the cases with a description of who was depicted in each photograph. Inside the case of a photograph of Silas’ daughter Philena was a longer caption:
1st photo ever taken in
our family – taken by
Southworth of Boston
when Philena was there
taking music lessons.”
The name Southworth jogged my memory. Back in May we were treating True Flag, a newspaper published in Boston from 1851-1908. While encapsulating an issue from Saturday July 15, 1854, I had noticed an advertisement for daguerreotypes and taken a photograph of it.
Southworth & Hawes was a prominent photography business active in Boston in the mid-1800’s and well known for their portraits of notable people of the day, including Henry Wadsworth Longfellow, Ralph Waldo Emerson, and Harriet Beecher Stowe. The daguerreotypes of Albert Sands Southworth and Josiah Johnson Hawes are held today in the collections of The George Eastman House, The Metropolitan Museum of Art, and the Museum of Fine Arts Boston.
Curious to learn more about Messrs. Southworth & Hawes, I requested a couple of books from Duke Libraries and noticed something repeated in their images:
Like the backdrop on class picture day, it looks like certain props and settings were used repeatedly in the studio of Southworth & Hawes; A table with a floral patterned cloth, a potted plant, and a book seem to have been an especially popular combination of props. The specific fern-patterned cloth draped on the table beside Philena even makes an appearance in a number of other photographs. A daguerreotype of Harriet Beecher Stowe at The Met looks especially similar.
Along with celebrities, Southworth and Hawes took a number of photographs of their own family members. Although not the best example of their work, in this photograph of Nancy Southworth Hawes (wife of Josiah Hawes and sister of Albert Southworth) at the MFA in Boston, she appears to be holding the same highly decorated book as Philena.
Unlike the fern-patterned cloth and potted plant that popped up again and again, the photo of Philena and the photo of Nancy are the only two I found where this specific book was identifiable. I wonder if the book was just another prop sitting around the studio for patrons to use, or if it held some greater significance. Interestingly, Albert and Nancy Southworth grew up on their parent’s farm in Fairlee, Vermont; less than 10 miles from Philena’s childhood home in Bradford. Is it possible these two families knew each other before meeting again in the Boston photographer’s studio?
One can really go down a rabbit hole when it comes to making labels for book enclosures. In addition to considering the layout and typeface, there are a number of materials and printing or gilding techniques that can be used to create one. Stamped leather labels are certainly a nicer option, but require special equipment and are very time consuming to produce.
Paper labels are very quick to make, especially in large quantities, and everyone has the necessary equipment. With a little effort in setup, paper labels can look surprisingly good on a box.
One of the major problems I have had with setting up paper labels digitally is the lack of spacing control between lines or between letters that one has with a hot stamp or handle letters. Common word processing software doesn’t make this type of layout work easy; however, I have recently discovered some simple tricks in Microsoft Word that can be employed to achieve a more pleasing arrangement of text.
When setting up a label in Word, I will often start with a simple text box. Before typing any titling text, I set the dimensions of the text box based on measurements from the spine of the enclosure. I will also set the box to have a compound line (thick and thin) to look more like traditional tooling. There is a lot of literature about choosing typefaces and laying out book titling, so I won’t get into any of that here. Let’s just focus on spacing.
With the text generally arranged and sized to fit, I will start adjusting the spacing between lines, commonly referred to as “leading“. Word seems to default to multiple spacing between lines, so I remove all of that first. With all the text selected, right click and select Paragraph. After setting the line spacing to Single, you can then customize the point spacing after each line to achieve the leading you want.
Next you may need to adjust the spacing between letters, also known as kerning. The example below uses Centaur as the typeface and, on the left, you will see some bigger variation between letter spacing. Compare the “IB” to the “RO” spacing in “LIBRORUM”.
On the right, I have adjusted the letters to have a more uniform appearance. I find this spacing more subtle on a screen, but much more obvious on a printed label for some reason. The kerning is adjusted in a similar way to the leading: with a letter highlighted, right click and select Font. Under the Advanced tab, you can choose Expanded or Condensed spacing and modify it with a number. In this example, I expanded the spacing of the I and B and reduced the spacing for the R.
I find that a little consideration to spacing makes a huge difference in the look of my book titling and labels. Hopefully these simple modifications can come in handy for other folks, too.
My love of extreme things (extreme sports, extreme reality television) has led me to create a two part blog series: EXTREME ENCLOSURES.
In part one, I will detail the creation of four Andre-the-Giant-sized cloth-covered telescoping boxes for our cherished Audubon’s Birds of America. Part two will chronicle the construction of corrugated clamshell boxes (aka “drop spine boxes” or “pizza boxes”) for the few hundred miniature books held by Rubenstein Library.
Boxing The Audubons
Audubon’s Birds of America is a four volume set of double elephant folios containing life size prints made from engraved plates. Each volume has a footprint of around 40 inches x 27 inches, and weighs around 47 pounds. When making an enclosure for a book this gigantic there are a few things to keep in mind: the weight of the item after boxing, and the area of the materials needed to construct the box. Measures need to be taken to ensure the box itself isn’t too heavy. Per Beth’s suggestion, I used double-walled corrugated board for the bottom tray. Double-walled corrugated board would lend adequate support while also being significantly lighter than a tray made of double walled binder’s board.
One problem: the sheets of double walled corrugated are not large enough to create a box this big. Using a micro spatula, I peeled one layer off each sheet and laminated two sheets of corrugated together with a Polyvinyl Acetate (PVA) and Methyl cellulose mix.
Once the sheet is dry I can construct the bottom tray and cover it with cloth. I chose a tray that had three fixed walls and one collapsible wall that would facilitate removal of the book. Working with wet adhesive and corrugated board was the most frustrating step of all. Unlike binder’s board, corrugated will buckle under pressure from my bone folder. When adhering the cloth, I had to be very careful of how hard I pressed. A ginger touch was key. The corrugated also felt unstable while the adhesive was wet. The inner corners of the tray were especially wonky after getting all the cloth laid down, making me feel as though all was lost. This wonkiness did, however, subside after adequate time had been given for the adhesive to dry. Once dry, the tray was remarkably strong.
Moving on to the top tray was a reprieve. What a cake walk! The top tray was constructed like any cloth covered box; a single wall of binder’s board. The cloth stuck to that binder’s board like a Californian on a skateboard. The main challenge was adhering large swaths of cloth consistently to avoid air bubbles.
Next I created Velcro tabs to adhere in between the tray and the outer lip to keep the top and bottom lids securely fastened when the box is handled. I lined the Velcro with book cloth and shaved down the Velcro parts that would be placed in between the tray and the lip to reduce their swell. Making sure the Velcro strips stayed stuck to the tray was an issue. The PVA often had trouble keeping the plasticized Velcro in place, making it easy to dislodge the strips. I found that once the lip had been firmly adhered, the strips stayed in place.
Next comes adhering the outer board to the tray. Because this behemoth would not fit in any of our presses and the area of the tray was impossible to adhere in one go without adequate pressure, I resorted to a multiple-step-adherence-approach. I used brick weights for an initial gluing. Once dry, I had to re-glue each corner, one at a time, and place each corner into the press with blocks. I rigged up an extreme support system for the tray while in the press: a stool.
And finally, the finishing touches: labels.
Upon fitting the item into the box I weighed the item with its enclosure. It totaled a whopping 66 pounds. The book weighed 47lbs, and the box 19 pounds. Saving a bit of weight on this box kept us from reaching into the twenty-pound range on the enclosure alone.
But alas, we must always say goodbye. In extreme circumstances, I prefer to keep my eyes closed so as to avoid crying.
The Audubon’s have settled down in their new homes. Although they continue to amaze visitors of Duke University with their awe-inspiring depictions of the Birds of America, their bindings are no longer at risk in un-enclosed spaces.
Stay tuned for Part Two of Extreme Enclosures: Extreme Miniatures.
As evidenced by the archives from the tag “Boxing Day“, we make a lot of boxes in the lab. Some objects require specific enclosures and we have many materials and techniques at our disposal for fulfilling the needs of the object. Of particular interest to me lately have been enclosures appropriate for parchment over boards bindings, which include some form of restraint.
Parchment is hygroscopic by nature and will change size and shape dramatically under different environmental conditions (Woods, 2006). The structure and limited adhesive of a limp binding will usually allow the parchment to adjust (Clarkson, 1982), but bindings composed of parchment adhered over stiff boards can distort significantly with fluctuating relative humidity. The vellum over boards binding below recently came through the lab for treatment and illustrates (to a lesser extent) some of the typical warping that can occur with this style of binding.
Planar distortion of the board creates a poor book action and opens the textblock to dust penetration. Once the boards have been flattened again, storing the book in an enclosure can create a micro-climate and buffer the item from some environmental fluctuations. Including gentle pressure or restraining elements can prevent the warp from returning or pushing open the box. Note that one should not attempt to flatten warped boards with pressure alone. Simply pressing down on the fore edge of a distorted board will strain and potentially damage the joints. There are many different options for creating a restraining enclosure; the following examples are common solutions, but certainly not exhaustive.
The simplest and most cost-effective of this type of enclosure is the the classic “phase box” (Waters, 1998). This design is constructed from stiff barrier board, with string and post ties at the fore edge. While quick to construct, this solution is not as elegant as some of the others.
Another option is to construct a restraining wrapper that would sit inside a standard box. Tomomi Nakashima, Book Conservator at the University of Utah, J. Willard Marriott Library, has developed a rather inventive wrapper, using magnets, barrier board, and clear polyester. Photos below by Christina Thomas.
The slipcase was once a very popular style of book enclosure and is still often seen with fine press editions or design bindings. Slipcases can be simple to construct and, if well-fitting, will restrict the opening of the volume inside. Roger Powell’s treatment of the Ricemarch Psalter in the early 1950s made use of a wooden version of the slipcase for this very reason (Cains, 1996). It is worth mentioning that Powell also used a set of spring-lidded wooden boxs for the Book of Kells (Pignatti, 2012).
We do not currently make new slipcases for items in our collections. Books can be difficult to safely remove from your run-of-the-mill cloth-covered slipcase, and the abrasive action of sliding a book in and out can present a danger to fragile covering material. A chemise may reduce but likely will not eliminate those handling issues.
The cloth-covered “clamshell” or “drop-spine” box can be a more durable and aesthetically pleasing enclosure than those listed above. For books requiring restraint, the clamshell structure can be easily modified to include restraining elements. There are examples in the literature of boxes with clasps (Foot, Blacker, & Poole-Wilson, 2004), but I cannot recall ever seeing one. Clasps can be difficult or expensive to make, and one would assume those clasps have suffered from the same condition issues as their book-bound counterparts over the years. There are modern alternatives with the same mechanical principles, however. Fore edge restraints using ribbon ties, Velcro®, or metal snaps can easily be adhered between the trays and case of the clamshell enclosure.
As bookcloth can tear quite easily with applied shearing force, I would suggest including a more durable material at the core of each strap. I will often use Tyvek® or parchment strips, wrapped in bookcloth.
Another variation commonly made to hold parchment over boards bindings is the pressure-lid clamshell box. The inner tray of the enclosure features a simple flap or lid, which is hinged to the fore edge wall and prevents the boards from pushing the box open.
I cannot recall ever receiving explicit instruction on an exact method for covering and attaching the inner lid for this style of box. Having learned many different methods over the years for constructing and covering a standard clamshell enclosure, I became curious as to how other conservators and bookbinders were executing this modification.
I began with a review of the literature on book enclosures to determine where this structure originates. Email listserv discussions have suggested several attributions of its origin to notable figures in the field, but I have not been able to make a definite link. Many of the classic manuals and reference volumes describe a method for making a clamshell box, but I have yet to find one which describes the making of the pressure lid. My biggest obstacle is nomenclature: while I tend to call this feature a “pressure lid”, it is often described with other names. A simple online search yields several images of this style of box shared in digital portfolios or treatment documentation, with “pressure lid” “pressure flap”, “fore edge flap”, and “inner lid” all appearing as descriptors. I have not yet been able to examine some of the more obscure print resources, however, and my own admittedly compulsive curiosity will likely force me to continue searching.
With input from colleagues, I began constructing models using different methods of attaching the pressure lid. Four methods emerged. A note about these illustrative models: Each model is only the inner tray of the enclosure. I completed each step of the covering process with a different color of cloth to better illustrate the process. In all but Method D, the pressure lid closes to fit inside the walls of the tray. Obviously for these methods, the thickness of the covered board must be accounted for in constructing the dimensions of the inner tray.
My initial thought was to attach the inner lid with as few pieces of cloth as possible. In this method, the head and tail of the lid are first covered with strips of cloth, then the lid is attached at the time of covering the inner tray. The interior of the lid and tray were then covered with a single piece of cloth. Click the thumbnail images for a larger image.
This method of covering is the nicest looking in my opinion, but it can be tricky to accomplish neatly and produces more waste cloth than the others.
Sidney F. Huttner suggested a method with similar attachment. The lid is still attached at the time of covering the tray, but with a much narrower strip of cloth. A second piece of material covers the outside of the lid, with turn-ins at the three remaining sides. For this model, I covered the inside with separate pieces of cloth for the interior hinge, interior of the lid, and floor of the tray.
This covering technique can be accomplished very quickly and makes use of smaller pieces of material, creating less waste. The slight bump of cloth on the exterior of the tray (far right image) is not as attractive, but could be mitigated with in-filling.
The boxing manual from the Library of Congress includes a description of a clamshell box with a “hinged shelf” (Brown, Etherington, & Ogden, 1982). This shelf was intended to separate and hold two items in the interior of the box; for example, a book and a set of plates. I discovered that the design could be easily adapted to function as a pressure lid.
The inner tray of the enclosure is constructed and covered in the usual way, with an additional covered board thickness added to the width of the tray dimensions. The flap is constructed separately, using two pieces of board. The thinner board of the flap is then glued to the interior fore edge of the tray.
This method uses a little more material and can be a little tricky to securely attach. During the gluing process, I stood the tray up on the fore edge inside a book press with the flap in place. Wooden blocks were then stacked inside the tray until they cleared the spine edge. The press was then tightened down onto the wooden blocks.
The final method of covering was suggested by Scott Kellar. For this method, the pressure lid actually sits on top of the walls of the tray. The tray is covered as usual, but the flap of cloth which usually covers the interior of the fore edge wall of the tray is sliced off at the top of the wall. The pressure lid is covered with an extended piece of cloth at what will be the fore edge and the remaining three sides are turned in. A spacer of thin material (20pt Bristol board) is placed between the flap and the tray while the extended cloth is glued around the fore edge of the tray and turned in underneath. When dry, a strip of material is added to the interior joint. In this model, it would appear that the interior fore edge wall and floor of the tray are covered separately. The lovely cut away model pictured below was kindly made and sent to me by Karen Hanmer.
I find that it is always nice to have options when constructing an enclosure and the different elements of these methods can be adapted or recombined in many different ways. I would like to thank everyone who answered my inquiries about their covering methods, and I hope that these descriptions and images are of some use to those attempting the pressure lid box for the first time.
Brown, M., Etherington, D., & Ogden, L. (1982). Boxes for the protection of rare books. Washington, D.C.: Library of Congress.
Cains, A. G. (1996). Roger Powell’s innovation in book conservation: The early Irish manuscripts repaired and bound, 1953-1981. In R. Powell & J. Sharpe (Ed.). Roger Powell, the compleat binder (pp. 80-85). Turnhout: Brepols.
Clarkson, C. (1982). Limp vellum binding and its potential as a conservation type structure for the rebinding of early printed books. Hitchin, Herts., England: Red Gull Press.
Foot, M. M., Blacker, C. & Poole-Wilson, N. (2004). Collector, dealer, and forger: A fragment of nineteenth century binding history. In M. M. Foot (Ed.) Eloquent witnesses (pp. 264-281). London: Bibliographical Society.
Pignatti, G. (2012). Boxes for the housing and protection of books: Observations on their history and development. E-conservation: the online magazine, 23.
